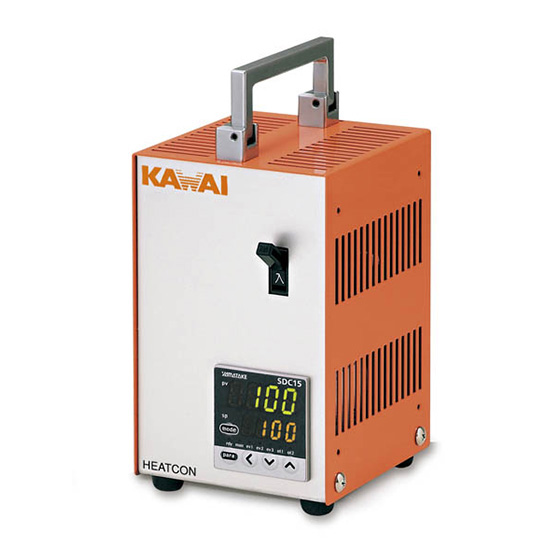

Temperature Controllers (HEATCON)

Having troubles controlling the temperature?

This is a digital thermostat with easy ON-OFF and PID control. The switch with breaker, SSR (solid-state relay) and terminal block are all integrated.

Since this thermostat features a self-tuning function, it will tune itself even when the control amount is affected by vibration due to some disturbance... which settles (stabilizes) vibrations in the control amount, providing an exceptionally accurate temperature reading.

The thermostat can be easily operated on screen via a personal computer, thanks to its onboard communication functions.

This makes it useful as a basic data logger or for saving temperature data collected to hard disk.

Minimum lot charge : US$355.00~

Temperature Controllers (HEATCON)

Option

  • Can be used as a basic data logger.
  • Temperature fluctuations can be viewed onscreen. (Requires communication software, purchased separately.)
  • Collected data can be saved to hard disk. (Requires communication software, purchased separately.)

Specifications

Control method ON/OFF and PID
Dimensions (mm) 100 × 198 × 105
Power supply 100 VAC-220 VAC (60 Hz), single-phase
Maximum current 20 A
Input types Thermocouple (K, J, E, T, DIN U, DIN L, R)
Usage temperature 0 to 50ºC (without condensation)
Overcurrent shutoff Breaker switch
