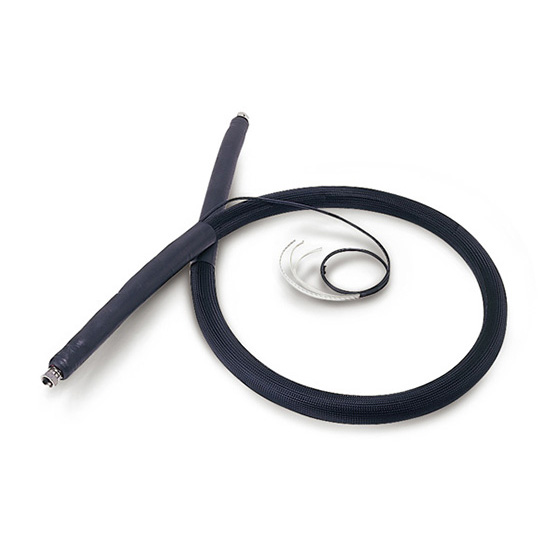

Hose Heaters
The pressure-resistant hose can be heated as well!
Our hose heater is a flexible heater that integrates a silicone rubber heater with a pressure-resistant hose.The hose diameter and pressure resistance can be selected according to your needs, making safety, durability, and labor savings a reality.
The heater comes with a built-in thermocouple, and temperature can easily be controlled by using the heater along with a thermostat.
Minimum lot charge : US$100.00~
Option
- Thermocouple built-in type
Specifications
| Length | Up to 10 ft / 3300 mm |
|---|---|
| Hose Outer Diameter (Φ) | 2/5 to 1 2/5" / 10 to 35 mm |
| Operating Temp.* | Up to 430ºF / 220ºC |
| Max. Watt Density* | 10 W/in2 / 1.5 W/cm2 |
| Max. Voltage (V) | 240 |
| Max. Resistance Density | - |
| Wattage Tolerance | +/-10% |
| Outer Dimension Tolerance | - |
| Insulation Resistance (MΩ/DC V)** | More than 1000/500 |
| High Pot Test (V/min.) / (V/sec.) | 1500 / 1800 with 5 mA |
* Depending on heater specifications.
** Under no-heat conditions. This might be lowered to around 100 MΩ, depending on operating conditions.
